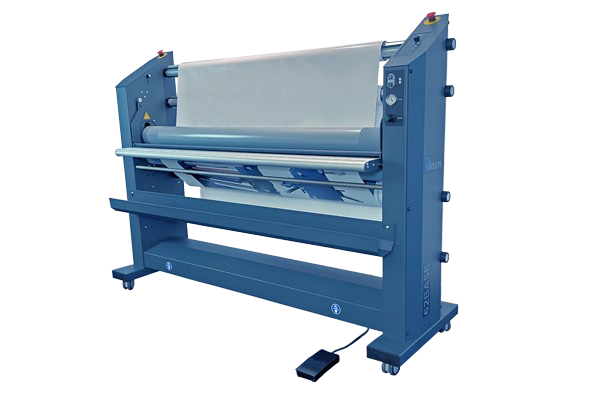

Welte 62 Base

The Welte 62 Base is a fast and simple assembly and laminating machine.

Price on request Request product information
Product information

The Welte 62 Base is a fast and simple assembly and laminating machine.
The system shows its advantages mainly in the clear, user-friendly concept and in the quality of the rolls with a special, not too hard rubber composition.
The maximum passage height is 40 mm. The maximum processing speed is infinitely adjustable up to 5 metres per minute.

The rollers have a diameter of 116 mm and have an anti-stick coating. The upper roller is pneumatically raised and lowered, the pressure is variably adjusted with a pressure regulator, the pressure is displayed with a manometer.

The 3 material shafts (optionally 4) ensure easy operation and quick material changes.

The top roller can be pre-programmed with 30/40/50° C heating.

  • Maximum speed: 5 m/min
  • Speed regulation via rotary knob
  • Additional foot pedal to lower the top roller when setting up the machine
  • Photocell and emergency stop for maximum safety
Product specifications
  • Brand
    Welte
  • Dimensions
    2000 x 675 x 1500 mm
  • Weight
    215 kg
  • Maximum media width
    1,600 mm
  • Maximum media thickness
    40 mm
  • Application
    sign
